Description
⚙️ Project Overview

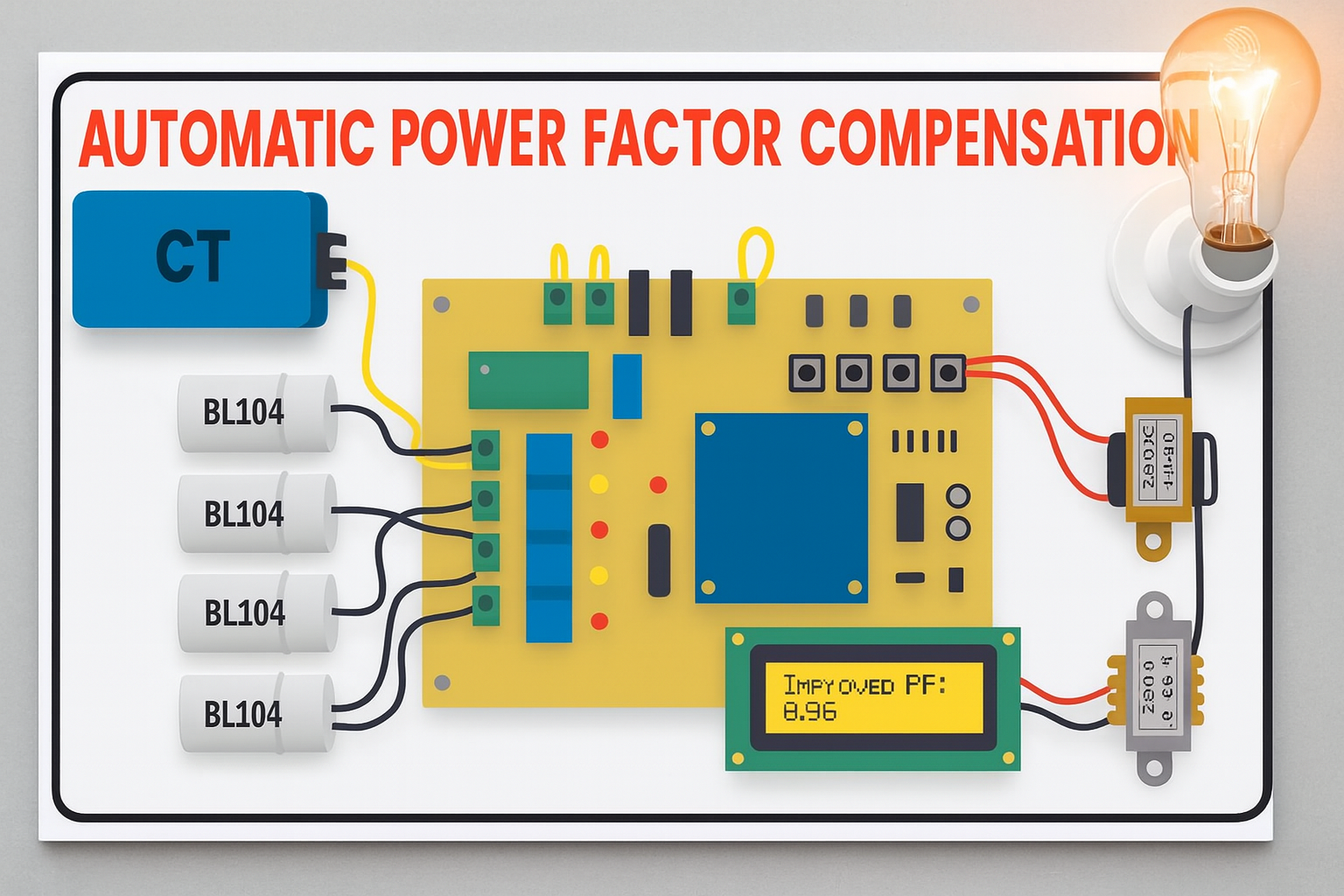

The Fully Automatic Power Factor Compensation (APFC) system by FluxPrime is designed to improve power quality in single-phase industrial loads. The project automatically maintains near-unity power factor using an Arduino microcontroller, current transformer (CT), and relay-controlled capacitor bank.
It ensures efficient energy usage, reduces line losses, and prevents power factor penalties, making it a highly relevant and practical project for students and industries.
🧠 Working Principle
-
The CT sensor measures the current drawn by the load.
-
The Arduino calculates the phase difference between current and voltage.
-
If the system detects a lagging power factor, it activates relays to connect capacitors.
-
The capacitors compensate for the reactive component, bringing the power factor closer to unity.
-
The system displays real-time power factor on an LCD or LED display.
🔩 Key Features
-
Automatic detection and correction of lagging power factor
-
Single-phase operation using Arduino microcontroller
-
Relay-based switching of capacitor banks
-
Real-time display of power factor value
-
Compact, portable, and safe for demonstration
-
Fully documented project with report and block diagram
🧰 Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 230V AC, Single Phase |
| Controller | Arduino Uno |
| Sensing Element | Current Transformer (CT) |
| Capacitor Bank | Multi-stage switched capacitors |
| Relay Driver | 5V/12V transistorized driver |
| Display | 16×2 LCD / Digital PF Display |
| Output | Power Factor Compensation (Automatic) |
| Operating Frequency | 50 Hz |
| Dimensions | Compact portable setup |
| Applications | Industrial, Educational, Laboratory Projects |
🎓 Educational Outcomes
Students learn about:
-
Power factor theory and correction techniques
-
Sensor interfacing and signal conditioning
-
Real-time automation with Arduino
-
Industrial energy management systems
-
Load balancing and efficiency optimization
📦 Package Contents
-
Fully Assembled Power Factor Compensation Kit
-
Arduino-based Control Board with Sensors
-
Relay Module + Capacitor Bank
-
Project Documentation (Word/PDF)
-
Block Diagram Image
-
User Guide / Working Manual
💡 Applications
-
Industrial Automation Systems
-
Energy Optimization Units
-
Smart Load Management Projects
-
Electrical Engineering Lab Demonstrations
-
Final Year Academic Projects
🧩 Advantages
-
Reduces energy losses
-
Increases system efficiency
-
Eliminates power factor penalty
-
Fully automatic operation
-
Educational and practical
